Basic Info
Model No.:YY
Control System:PLC
Delivery Time:30 Days
Warranty:12 Months
Forming Speed:0-15m/min
Material Of Cutting Blade:Cr12
Cutting Mode:Hydraulic
Type:Steel Frame & Purlin Machine
After Service:Engineers Available To Service Machinery Overseas
Additional Info
Packaging:NUDE
Productivity:200 sets/year
Brand:YY
Transportation:Ocean
Place of Origin:Hebei
Supply Ability:200 sets/year
Certificate:CE/ISO9001
Port:Tianjin Xingang
Product Description
Storage Rack Roll Forming Machine
Materials: The set uses hot rolling, cold rolling, galvanized steel, color steel and stainless steel as raw materials. Process Flow: After decoiling, continuous cold roll forming and automatic length cutting, the materials will be made into sectional materials with specific shape, size and dimension.

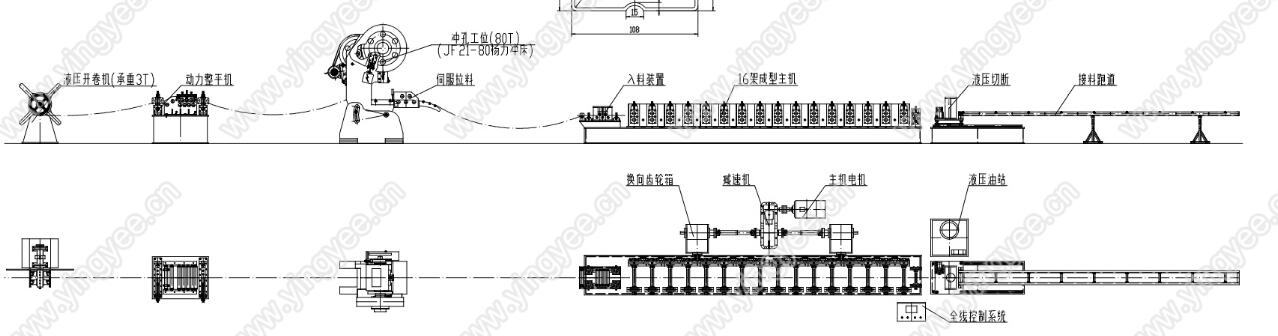

Working Flow: Decoiler – Feeding Guide – Servo feeding system – Hydraulic punching – Main Roll Forming Machine – PLC Contol System – Hydraulic Cutting – Output Table
Technical parameters:
| Matching material | Color steel plate, Galvanized, PPGI, Aluminum |
| Material thickness range | 1.5-3mm |
| Main motor power | 15KW |
| Hydraulic power | 11KW |
| Forming speed | 6-8m/min(include punching) |
| Rollers | 18-24 rows |
| Material of rollers | 45# steel with chromed |
| Shaft material and diameter | 80mm, material is 40Cr |
| Way of driven | Chain transmission or Gear box |
| Controlling system | Siemens PLC |
| Voltage | 380V/3Phase/50Hz |
| Material of blade | Cr12 mould steel with quenched treatment 58-62℃ |
| Total weight | about 15 tons |
| Size of the machine | L*W*H 12m*2.0m*1.6m |

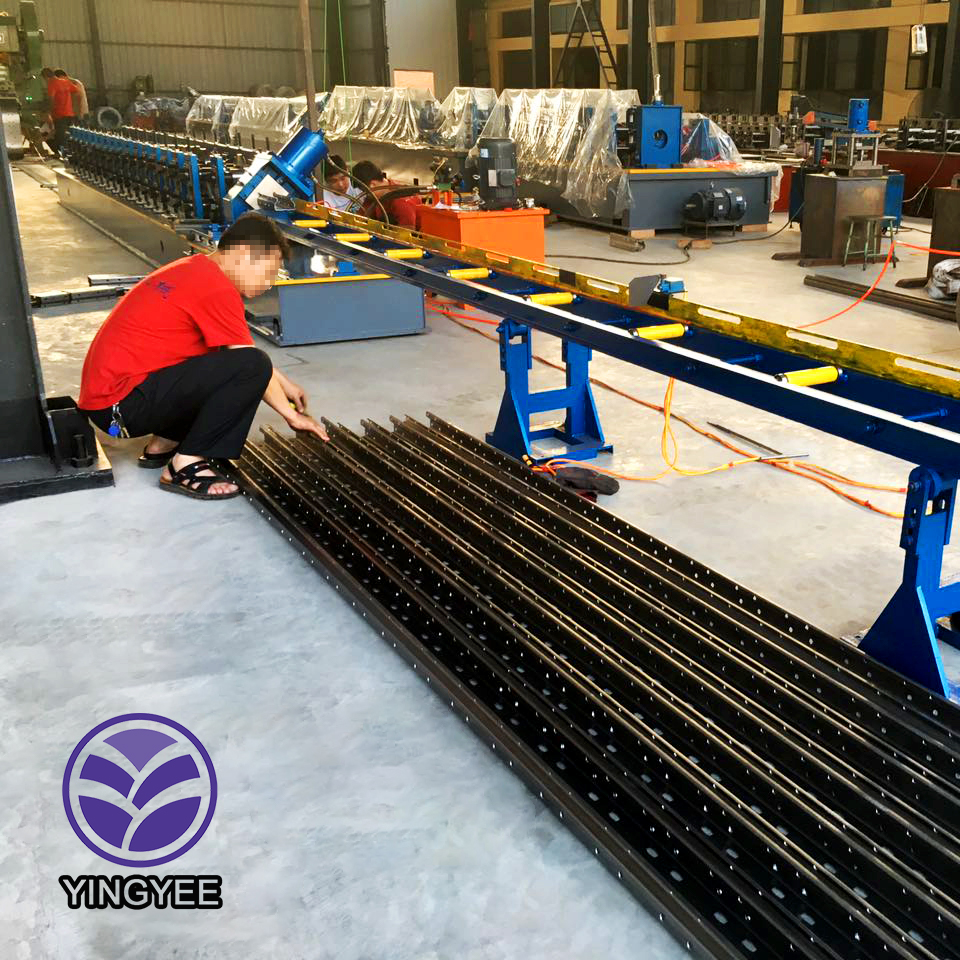

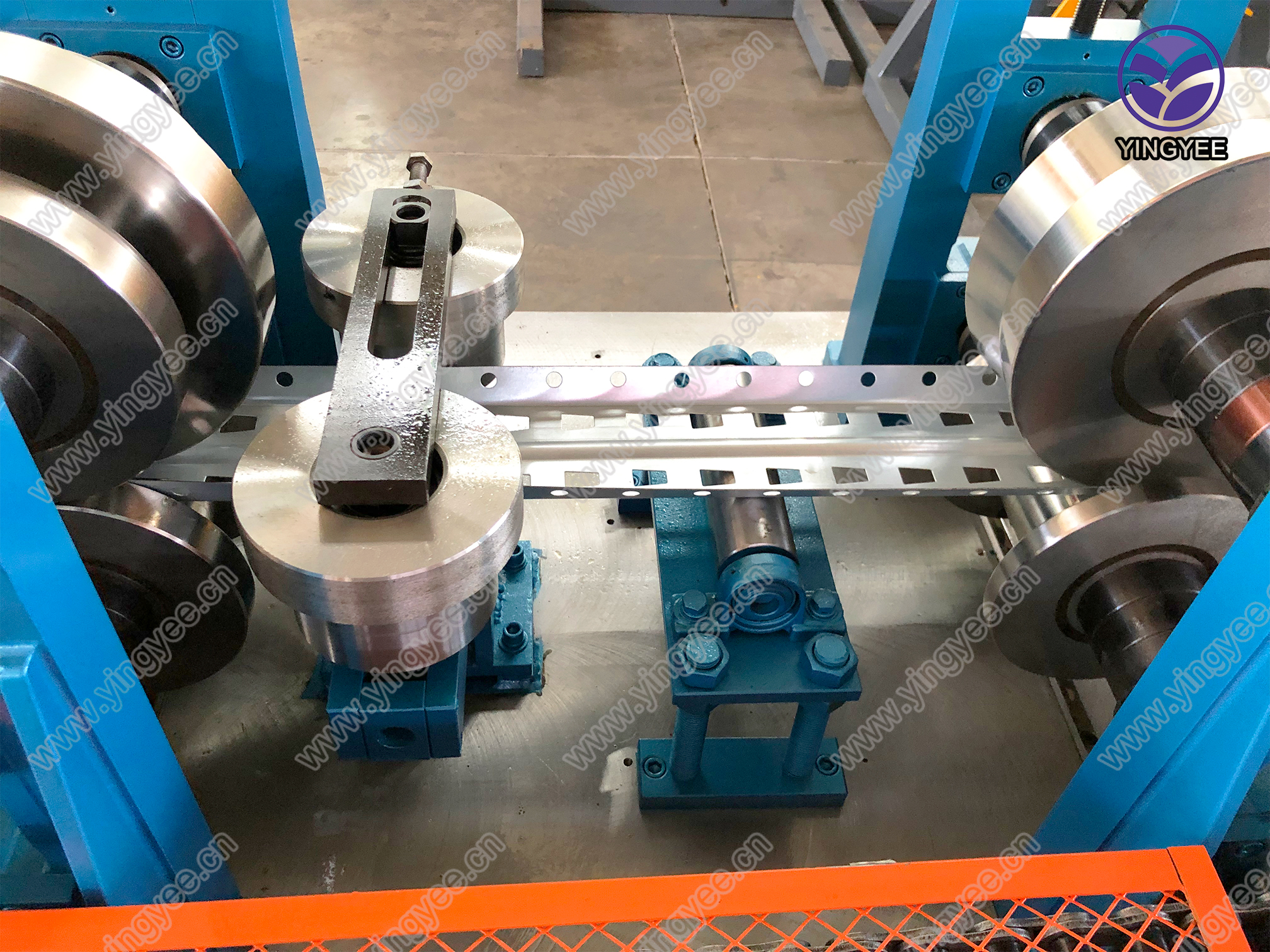

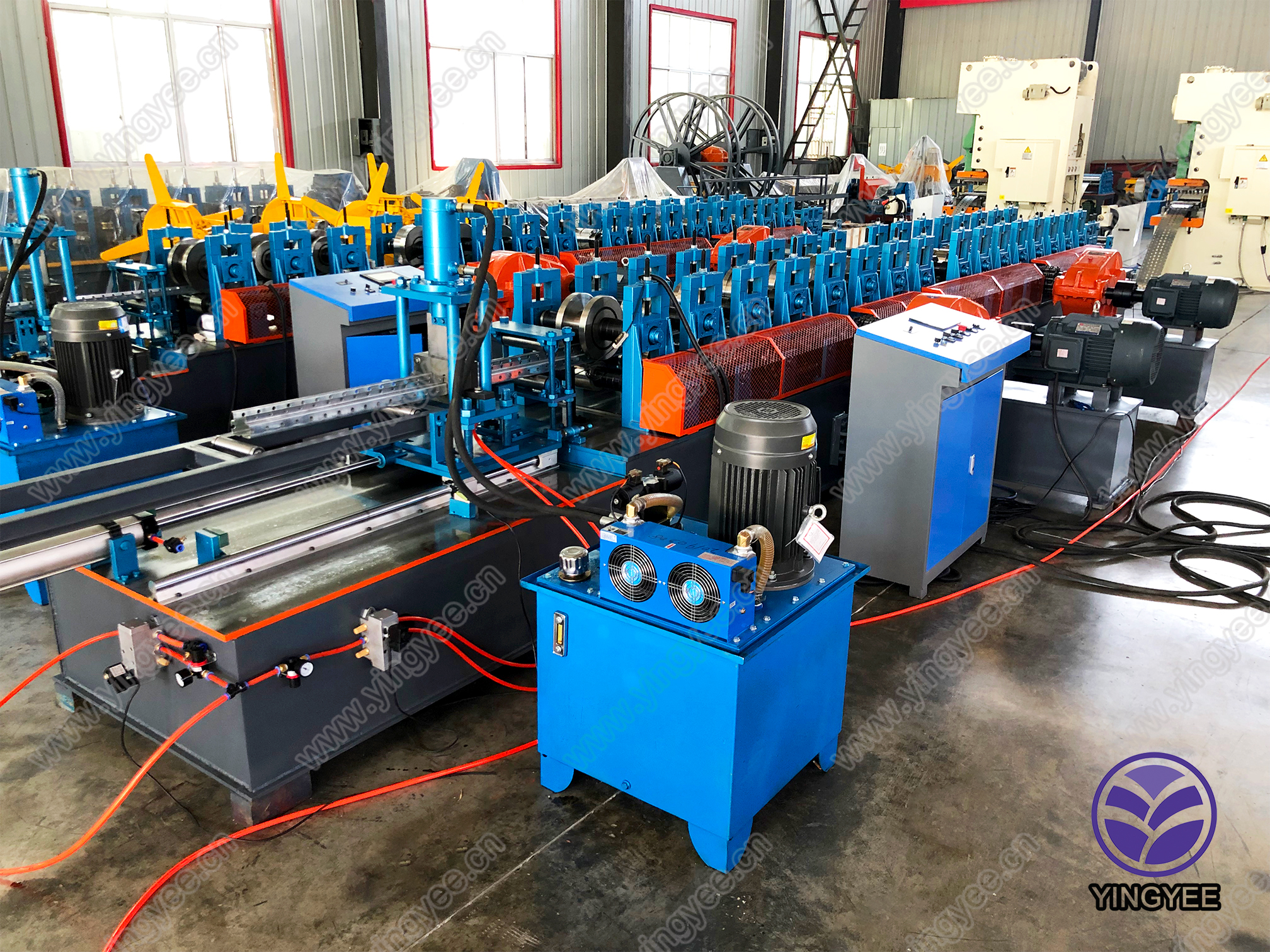

Pictures of machine:
Company information:
YINGYEE MACHINERY AND TECHNOLOGY SERVICE CO.,LTD
YINGYEE is the manufacturer specialized in various cold forming machineries and automatic production lines. We have a wonderful team with highly technology and excellent sales, which offer professional products and related service. We paid attention to quantity and after service, got great feedback and honor formal the clients. We have a great team for after service. We have sent several patch after service team to oversea to finish the products installation and adjustment. Our products were sold to more than 20 countries already. Also included US and Germany. Main product :
FAQ:
Training and Installation :
1. We offer installation service local in paid, reasonable charge.
2. QT test is welcome and professional.
3. manual and using guide is optional if no visiting and no installation.
Certification and after service:
1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery. Board.
Our advantage:
1. Short delivery period
2. Effective communication
3. Interface customized.
Looking for ideal Heavy Storage Rack Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Heavy Rack Machine are quality guaranteed. We are China Origin Factory of Storage Rack and Beam Machine. If you have any question, please feel free to contact us.
Product Categories : Storage Rack Roll Forming Machine > Storage Upright Roll Forming Machine
